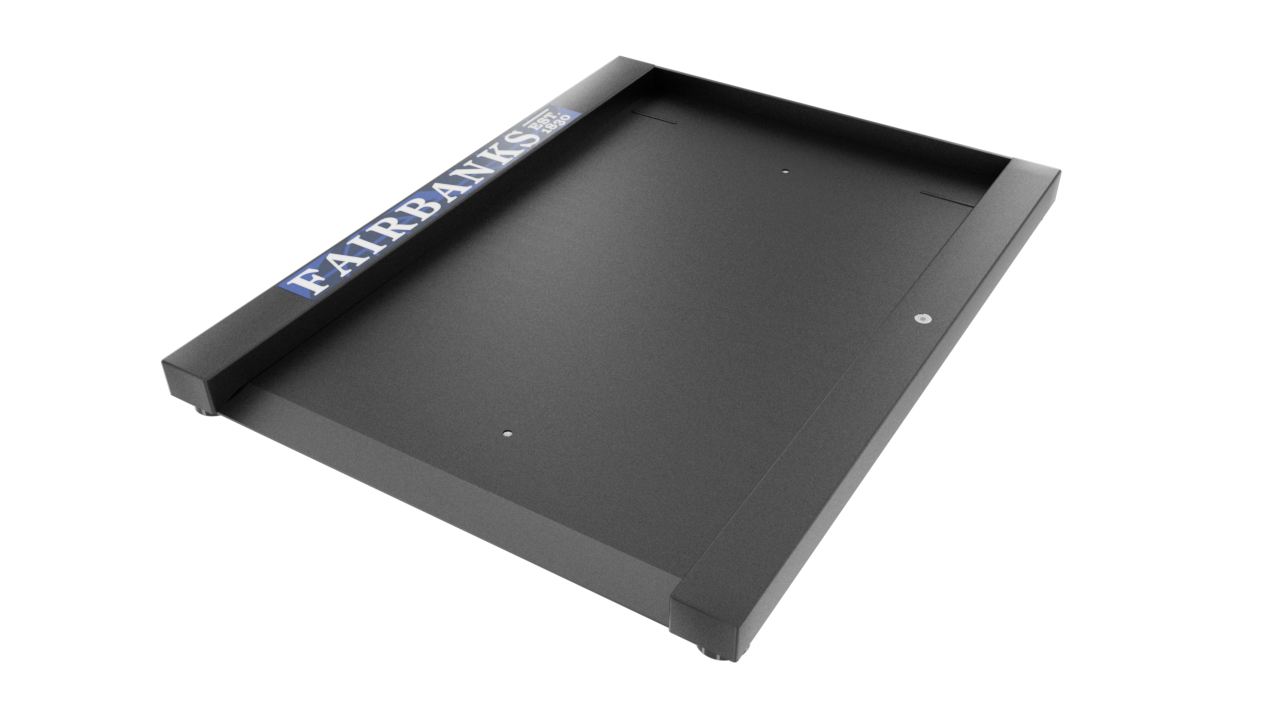

The Aegis Laundry Cart Scale is built for any operation where laundry volume is high and equipment is valuable.

• 3" live side  rails keep the footprint compact and double as guard rails to keep carts securely on the scale.
• Integrated wheel stops as well as a gentle 0.5° slope toward a backstop work together to prevent carts from unintentionally rolling off.



APPROVALS
NTEP	CC# 08-044
PLATFORM
Platform Size	26” x 42”
Overall Dimensions	32” x 42”
Scale Height (With Siderails)	3”
Platform Height	1.5”
Construction	Mild Steel
Capacity	2,000 lbs
Division Size	0.5 lbs
Endloading	100%
Cable	30 feet, PVC, jacketed
Finish	Black Powder Coating
LOAD CELLS
Resolution	5000d
Protection Rating	IP67
Load Cell Construction	17-4 PH Stainless Steel
Rated Output	2 mV/V +/- 0.002 FS
Bridge Resistance	1000 +/- 1 ohm
Ultimate Overload (FSO)	300% of FS
Side load (FSO)	100% of FS
NTEP Load Cell	CC# 06-065
OPTIONAL RAMP
Size	26” x 4” (Includes integrated bolt-down plates)
Construction	Mild Steel
Finish	Safety Yellow Powder Coating
